Bore Well Submersible

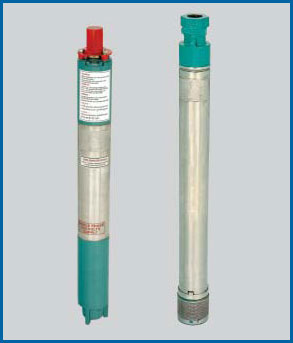

3� Shell Type Borewell Submersibles (TRT)

PRODUCT FEATURES

Light weight and easy to install	Stainless steel pump shell for corrosion resistance and LTB bushes for high wear resistance and longer life
Improved hydraulic design with increased efficiency and reduced power consumption	Built in NRV with minimum friction
Noise free operations.	Easily rewindable Squirrel-cage motor of water-cooled, designedfor 200 – 240 V, 50 Hz, AC power supply
Modular construction and easily interchangeable parts	High quality water-resistant polymer insulated wires for longer life even under adverse voltage conditions
Available in radial flow impeller design in shell type assembly	Pressure diaphragm to compensate excess pressure due to heating up of filled water
Impellers and diffusers of high quality engineering polymer

MATERIAL OF CONSTRUCTION

Part Name	Material;	Part Name	Material
Impeller	Noryl	Motor body	AISI 304
Diffuser /Diffuser housing	Noryl	Bearing housing	CI - FG 200
power consumption	AISI 410	Motor shaft	AISI 410
Pump shell	AISI 304	Journal bush	LTB-4
Bearing bush	NBR	Thrust bearing	AISI 410 - Carbon
Non return valve	AISI 304 / NBR	Winding wire	Polywrapped copper

APPLICATIONS

Domestic water supply	Water supply to high rise buildings, housing complexes, bungalows and industries
Cattle and poultry farms	Dairies
Fountains	Unshaped & crooked 4" Borewell

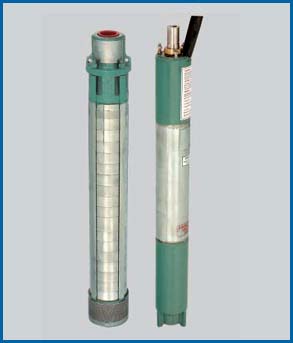

4" Box type Borewell Submersibles (TBRF)

PRODUCT FEATURES

Light weight and easy to install	Stainless steel pump shell for corrosion resistance and LTB bushes for high wear resistance and longer life
Improved hydraulic design with increased efficiency and reduced power consumption	Built in NRV with minimum friction
Noise free operations.	Easily rewindable Squirrel-cage motor of water-cooled, designedfor 200 – 240 V, 50 Hz, AC power supply
Modular construction and easily interchangeable parts	High quality water-resistant polymer insulated wires for longer life even under adverse voltage conditions
Available in radial flow impeller design in shell type assembly	Pressure diaphragm to compensate excess pressure due to heating up of filled water
Impellers and diffusers of high quality engineering polymer

MATERIAL OF CONSTRUCTION

Part Name	Material	Part Name	Material
Impeller	Noryl	Motor body	AISI 304
Diffuser	Noryl	Bearing housing	CI - FG 200
Diffuser housing	AISI 304	Motor shaft	AISI 410 / 431
Pump shaft	AISI 410 / 431	Journal bush	LTB-4
Bearing bush	NBR	Thrust bearing	AISI 420 - Carbon
Non return valve	AISI 304 / NBR	Winding wire	Polywrapped copper

APPLICATIONS

Domestic and community water supply	Water supply to high rise buildings, housing complexes, bungalows and Industries
Irrigation of farms	Cattle and poultry farms
Dairies	Cooling water circulating systems
Fire fighting systems	Fountains

4� Shell Type Borewell Submersibles (TRF / TRF-H / TMF)

PRODUCT FEATURES

Light weight and easy to install	Stainless steel pump shell for corrosion resistance and LTB bushes for high wear resistance and longer life
Improved hydraulic design with increased efficiency and reduced power consumption	Built in NRV with minimum friction
Noise free operations.	Easily rewindable Squirrel-cage motor of water-cooled, designed for 200 – 240 V / 350 – 440 V, 50 Hz, AC power supply
Modular construction and easily interchangeable parts	High quality water-resistant polymer insulated wires for longer life even under adverse voltage conditions
Radial and mixed flow impeller designs including high head versions in shell type assembly	Pressure diaphragm to compensate excess pressure due to heating up of winding and filled water
Impellers and diffusers of high quality engineering polymer

MATERIAL OF CONSTRUCTION

Part Name	Material	Part Name	Material
Impeller	Noryl	Motor body	AISI 304
Diffuser / Bowl /Diffuser housing	Noryl	Bearing housing	CI - FG 200
Pump shaft	AISI 410	Motor shaft	AISI 410
Pump shell	AISI 304	Journal bush	LTB-4
Bearing bush	NBR	Thrust bearing	AISI 420 - Carbon
Non return valve	Noryl	Winding wire	Polywrapped copper

APPLICATIONS

Domestic and community water supply	Water supply to high rise buildings, housing complexes, bungalows and Industries
Irrigation of farms	Cattle and poultry farms
Dairies	Cooling water circulating systems
Fire fighting systems	Fountains

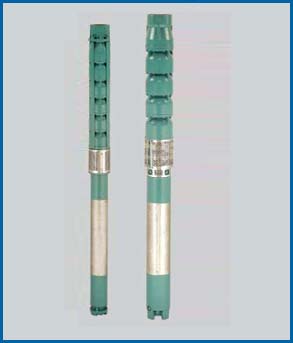

5� / 7� Mixed flow Borewell Submersibles (TMIF / TMVS)

PRODUCT FEATURES

Available in mixed flow impeller designs	Stainless steel stator shell to prevent rust formation
High quality dynamically balanced LTB impellers	Specially designed carbon thrust bearing
Special LTB and nitrile rubber bearing bushes for high wear resistance and longer life.	High quality seal rings and sand guards to protect motor from sand entry
Bowls are of high grade cast iron to ensure long life	High quality water-resistant polymer insulated wires for longer life even under adverse voltage conditions
Built in NRV with minimum friction	Pressure diaphragm to compensate excess pressure due to heating up of filled water
Easily rewindable Squirrel cage motor of water-cooled, designed for 350 - 440 V, 50 Hz, AC power supply

MATERIAL OF CONSTRUCTION

Part Name	Material	Part Name	Material
Impeller	LTB-2	Motor body	AISI 304
Bowl	CI FG 200	Bearing housing	CI FG 200
Pump shaft	AISI 410	Motor shaft	AISI 431 (TMIF) / 55C8 (TMVS)
Sleeve	AISI 410	Journal bush	Carbon (TMIF) / LTB-4 (TMVS)
Bearing bush	NBR	Thrust bearing	AISI 420 - Carbon
Non return valve	Gunmetal	Winding wire	Polywrapped copper

APPLICATIONS

Domestic and community water supply	Water supply to high rise buildings, housing complexes, bungalows and Industries
Irrigation of farms	Cattle and poultry farms
Dairies	Cooling water circulating systems
Fire fighting systems	Fountains
