Induction Motors

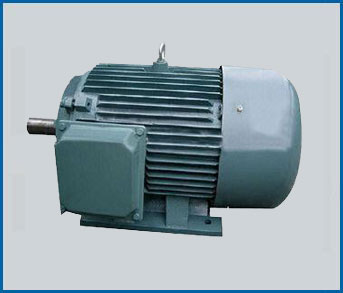

Foot and Flange Mounting TEFC Induction Motors (2P/4P/6P)

PRODUCT FEATURES

  • Enclosed in a robust, grey cast iron housing with ample cooling fins to ensure better heat dissipation
    		•
  • Cooling fan located on the non-driving side together with cooling fins provides adequate flow of air and ensures
    an efficient cooling system
    		•
  • Construction complies with protection requirements
    of IP44 / IP55 as per IS: 4691 / 1985
    		•
  • Motor is tested conforming to IS: 325 / 1996 and
    IS: 7538 / 1996
    		•
  • Dynamically balanced Pressure die-cast rotors with
    minimum vibration
    		•
  • Specially designed to withstand the low voltage variation
    of 200 – 240 V / 350 - 440 V, 50Hz, AC power supply
    		•
  • Deep groove ball bearings to carry relatively heavy radial
    thrust loads, resulting in long life
    		•
  • Low operating temperature with Class A insulation ensures
    long trouble free operation and increased winding life
    		•

    MATERIAL OF CONSTRUCTION

    Part Name Material; Part Name Material
    Shaft 45C8 / 55C8 Stamping Silicon steel
    Body CI GR 180 Bearing Alloy steel
    Front / Rear cover CI GR 180 Winding wire Enameled copper


    APPLICATIONS

  • Machine tools
    		•
  • Various industries
    		•
  • Agriculture and farming machinery
    		•
  • Pumping
    		•
  • Flour mills
    		•
  • Wood / stone cutting machines
    		•
  • Textile equipment.
    		•
