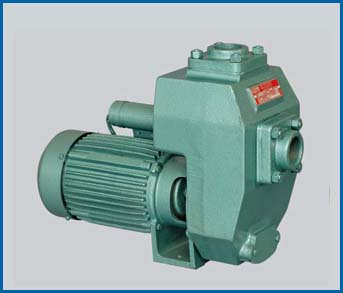

SELF PRIMiNG MONOBLOCk PUMP

Non-Clog Sewage Monoblocks (NMH)

PRODUCT FEATURES

  • Easy installation and low operating cost.
    		•
  • Aluminium pressure die-cast rotors press-fitted onto
    precision-machined motor shafts.
    		•
  • Improved efficiency and minimal maintenance by
    having the set operated on a common shaft.
    		•
  • Accurate control on the uniformity in air gap to
    minimize vibration.
    		•
  • Efficient self priming action without foot valve
    designed for quick air release.
    		•
  • Deep groove ball bearings packed with right quantity
    of special grease ensure long life.
    		•
  • Non-clogging open type impeller for handling suspended solids.
    		•
  • Durable and easy maintenance .
    		•
  • Dynamically balanced rotors and impellers ensure vibration free performance and enhanced life.
    		•
  • in a wide voltage variation 200 - 240 V, 50 Hz, AC power supply
    		•

MATERIAL OF CONSTRUCTION

Part Name Material Part Name Material
Impeller CI FG 200 Motor body CI GR 180
Casing CI FG 200 Shaft AISI 410
Mechanical seal Carbon - Ceramic Winding wire Enameled copper

APPLICATIONS

  • Pumping of sewage and effluents in Bungalows, Apartments, Office / Public buildings, Schools, Hotels,
    Restaurants and Hospitals.
    		•
  • Pumping of surface rain water.
    		•
  • Water recycling plants.
    		•
  • Dewatering of trenches and pits.
    		•
