high pressure pumps

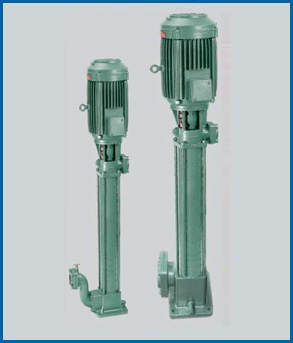

Multistage Vertical Pressure pumps (MRS / MRE)

PRODUCT FEATURES

  • Designed to operate at low voltage conditions
    		•
  • Dynamic balancing of rotors and impellers ensure
    vibration free performance and long bearing life.
    		•
  • Easy to install and require very simple maintenance.
    		•
  • Stainless steel graded pump shaft.
    		•
  • Sturdy and reliable.
    		•
  • Gunmetal diffusers and LTB-2 graded impellers
    		•
  • Silent operation and steady flow of water.
    		•
  • Squirrel cage motor of TEFC type designed to
    operate in wide range of voltage variation
    350 - 440 V, 50Hz, AC power supply.
    		•
  • Separate pump house is not required. The pumpset
    can be installed near the water source.
    		•
  • Easily accessible for servicing and overhauling.
    		•

    MATERIAL OF CONSTRUCTION

    Part Name Material; Part Name Material
    Impeller LTB-2 Motor body CI GR 180
    Diffuser Gunmetal Coupling AISI 410
    Pump shaft AISI 410 Motor shaft 45C8 / 55C8
    Sleeve AISI 410 Bearing Alloy steel
    Bearing bush NBR / LTB-4 Winding wire Enameled copper


    APPLICATIONS

  • Water supply to high rise buildings
    		•
  • Hotels, tea estates & sprinkler applications.
    		•
