centrifugal monoblock pumps

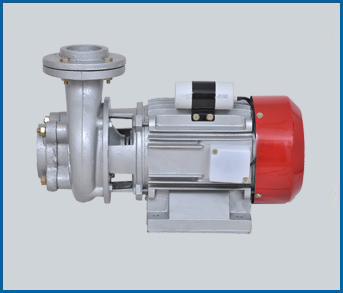

Single Phase Monoblocks (HCS / TCS)

PRODUCT FEATURES

  • Easy installation and low operating cost.
    		•
  • Deep groove ball bearings packed with right quantity
    of special grease ensure long life.
    		•
  • Improved efficiency and minimal maintenance by
    having the set operated on a common shaft.
    		•
  • Rigorous quality control testing at every stage of
    manufacturing ensures higher efficiency.
    		•
  • Dynamically balanced rotors and impellers ensure
    vibration free performance and enhanced life.
    		•
  • Squirrel cage motor of TEFC type designed to operate
    in a wide voltage range180-240 V, 50Hz, AC power
    supply.
    		•
  • Easy handling with an eye bolt.
    		•
  • Aluminium pressure die-cast rotors press-fitted onto

    • precision machined motor shafts.

MATERIAL OF CONSTRUCTION

Part Name Material Part Name Material
Impeller AISI 304 / Gunmetal /CI FG 200 Mechanical seal Carbon / Ceramic
Casing CI GR 180 Motor body CI GR 180
Sleeve AISI 410 (1.5/2.0hp) Shaft AISI 410 / 45C8
Flanges CI GR 180 Winding wire Enameled copper

APPLICATIONS

  • Domestic and community water supply
    		•
  • Irrigation of farms
    		•
  • Cooling water circulating systems
    		•
  • Fountains.
    		•
  • Water supply to high-rise buildings, housing, complexes, bungalows and industries
    		•
  • Cattle and poultry farms
    		•
  • Dairies
    		•
  • Fire fighting systems
    		•
