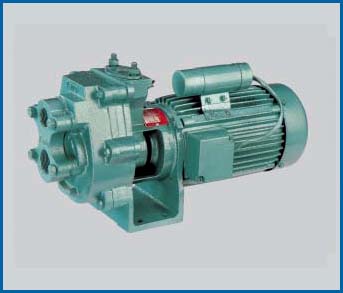

mono block pumps

MATERIAL OF CONSTRUCTION

Part Name	Material;	Part Name	Material
Impeller	CI FG 200 / Gunmetal	Motor body	AISI 304
Diffuser /Diffuser housing	CI GR 180	Bearing housing	CI - FG 200
Power consumption	AISI 410	Motor shaft	AISI 410
Pump shell	AISI 304	Journal bush	LTB-4
Bearing bush	NBR	Thrust bearing	AISI 410 - Carbon
Non return valve	AISI 304 / NBR	Winding wire	Polywrapped copper

APPLICATIONS

Pumping water from deep borewell for water supply to houses	Factories
Residential Colonies	Multistoried buildings and apartments

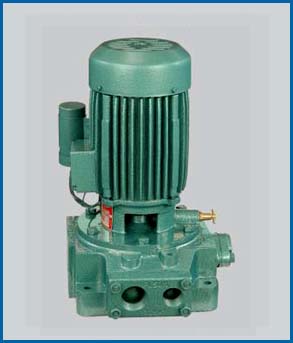

Single Phase Vertical Jet Monoblocks (HCSJ / TSJ)

FEATURES

Designed to operate at very low voltage.	Choice of different jet units for varying depths and discharges.
Easy installation and simple maintenance.	Easily accessible for servicing and overhaul.
Can be installed near the borewell or offset in an adjacent building without separate pump house..	Dynamic balancing of rotor and impellers ensures vibration free performance and longer bearing life.
Silent operation and steady flow of water.	Squirrel-cage motor of TEFC type designed to operate in a wide range of voltage variation 180-240 V, 50 Hz, AC power supply.
Pressure valve for easy adjustment of pump output matching with the borewell yield.

MATERIAL OF CONSTRUCTION

Part Name	Material	Part Name	Material
Impeller	AISI 304 / CI FG 200 / Gunmetal	Mechanical seal	Carbon - Ceramic
Casing	CI GR 180	Motor body	CI GR 180
Sleeve	AISI 410 (1.5 hp)	Shaft	45C8 / AISI 410
Flanges	CI GR 180	Winding wire	Enameled copper

APPLICATIONS

Pumping water from deep borewell for water supply to houses	Factories
Residential colonies	Multistoried buildings and apartments.
