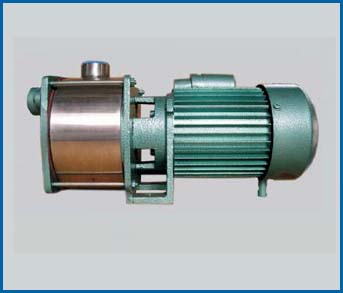

shallow welljet monoblock pump

SINGLE PHASE shallow welljetMonoblocks (hcs4025 sj)

PRODUCT FEATURES

  • Easy installation and low operating cost.
  • Aluminium pressure die-cast rotors press-fitted onto precision machined motor shafts.
  • Improved efficiency and minimal maintenance by
    having the set operated on a common shaft.
  • Deep groove ball bearings packed with right quantity of special grease ensure long lifeer
  • Dynamically balanced rotors and impellers ensure vibration free performance and enhanced life.
  • Squirrel cage motor of wet type, water cooled designed to operate in a wide range of voltage variation 180 - 240 V, 50Hz, AC power supply
  • In built jet unit assembly for increased suction

MATERIAL OF CONSTRUCTION

Part Name Material Part Name Material
Impeller Noryl Mechanical Seal Carbon Ceramic
Casing Noryl - AISI 304 Motor Body Aluminim
Sleeve Noryl Shaft AISI 410
Bearing bush Noryl Winding wire Enamelled copper

APPLICATIONS

  • Domestic Water Supply
  • Cattle & Poultry Farms
  • Water Supply to housing & Buungalows
  • Dairies Cooling water circulating systems.
  • Fountains
  • Pressure Boosting Systems
